Build Promotion

Promote a successful build to run a downstream job that depends on it. This makes the build you have verified the starting point for further processing.

Try the Example

Save the following as .onedev-buildspec.yml. Build publishes app.txt containing its build number. Deploy depends on Build, retrieves that artifact, and prints its contents. The example does not deploy to an external system.

version: 53
jobs:
- name: Build
  steps:
  - !CommandStep
    name: Build application
    runInContainer: true
    image: alpine:3.20
    interpreter: !PosixInterpreter
      shell: sh
      commands: echo @build_number@ > app.txt
    useTTY: false
    runAs: '0:0'
    condition: SUCCESSFUL
  - !PublishArtifactStep
    name: Publish application
    artifacts: app.txt
    condition: SUCCESSFUL
  retryCondition: never
  maxRetries: 3
  retryDelay: 30
  timeout: 3600
- name: Deploy
  steps:
  - !CommandStep
    name: Verify promoted artifact
    runInContainer: true
    image: alpine:3.20
    interpreter: !PosixInterpreter
      shell: sh
      commands: cat app.txt
    useTTY: false
    runAs: '0:0'
    condition: SUCCESSFUL
  jobDependencies:
  - jobName: Build
    requireSuccessful: true
    artifacts: '**'
  retryCondition: never
  maxRetries: 3
  retryDelay: 30
  timeout: 3600

1. Commit the specification and run Build from its play button in the build specification's Jobs tab.

2. Wait for success and inspect app.txt in the build's Artifacts tab.

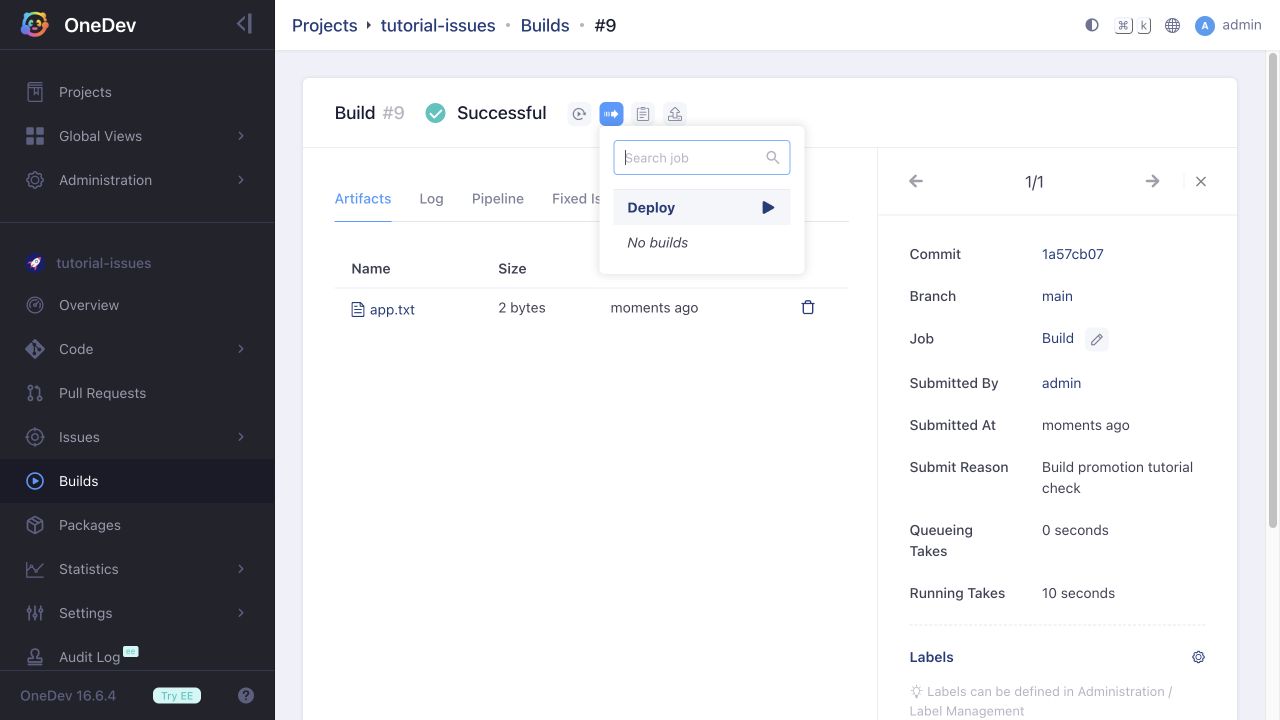

3. Open the promotion action beside the build status. Its menu lists downstream jobs defined by job dependencies. Click the play button beside Deploy.



4. Open the downstream build's log. It should print the promoted Build job's number, confirming which artifact it consumed. Use the Pipeline tab or Depends on link to inspect the dependency.

Running a Job Directly

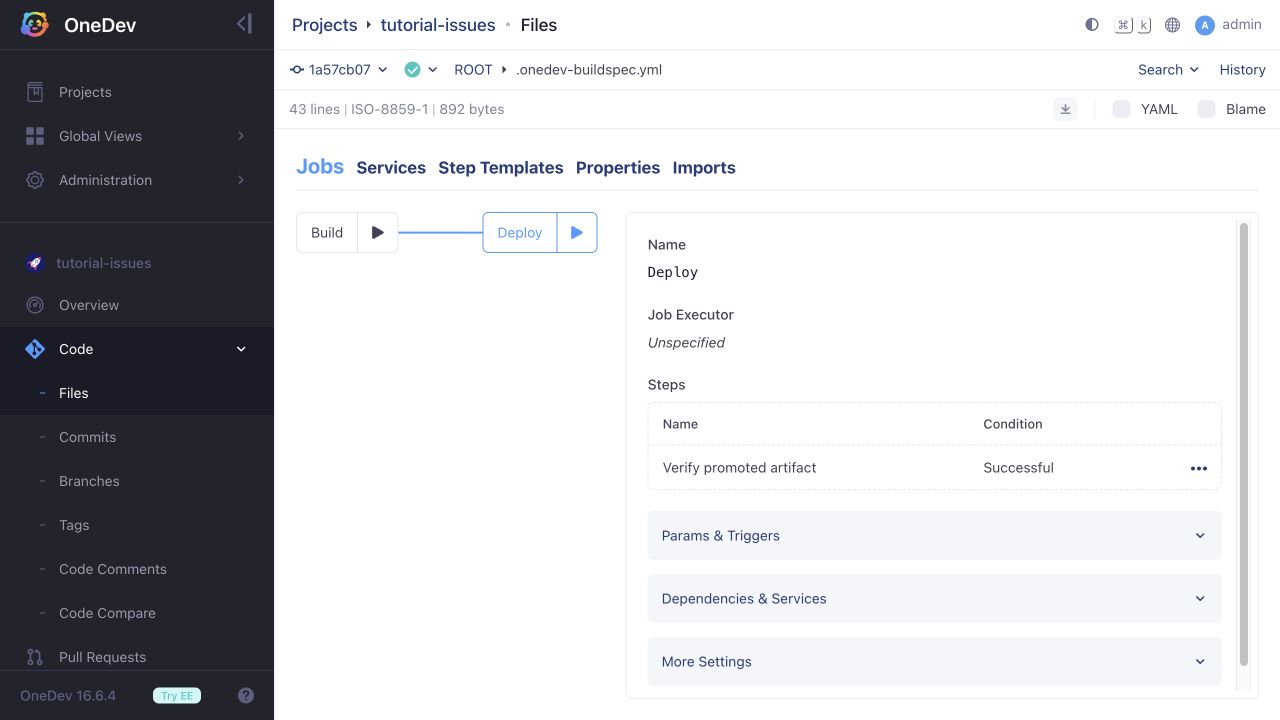

You can also run Deploy using its play button in the build specification:

A direct run does not necessarily create a new pipeline or rerun the upstream job. For this example, running Deploy again on the same commit reuses its existing build record and dependency on the successful Build job. Running it on a new commit creates builds for that commit, including the required upstream job.

Use promotion when starting from a specific build you have inspected, and verify the dependency and artifact before using a downstream job for a real deployment.
